Tilt Car Trailer

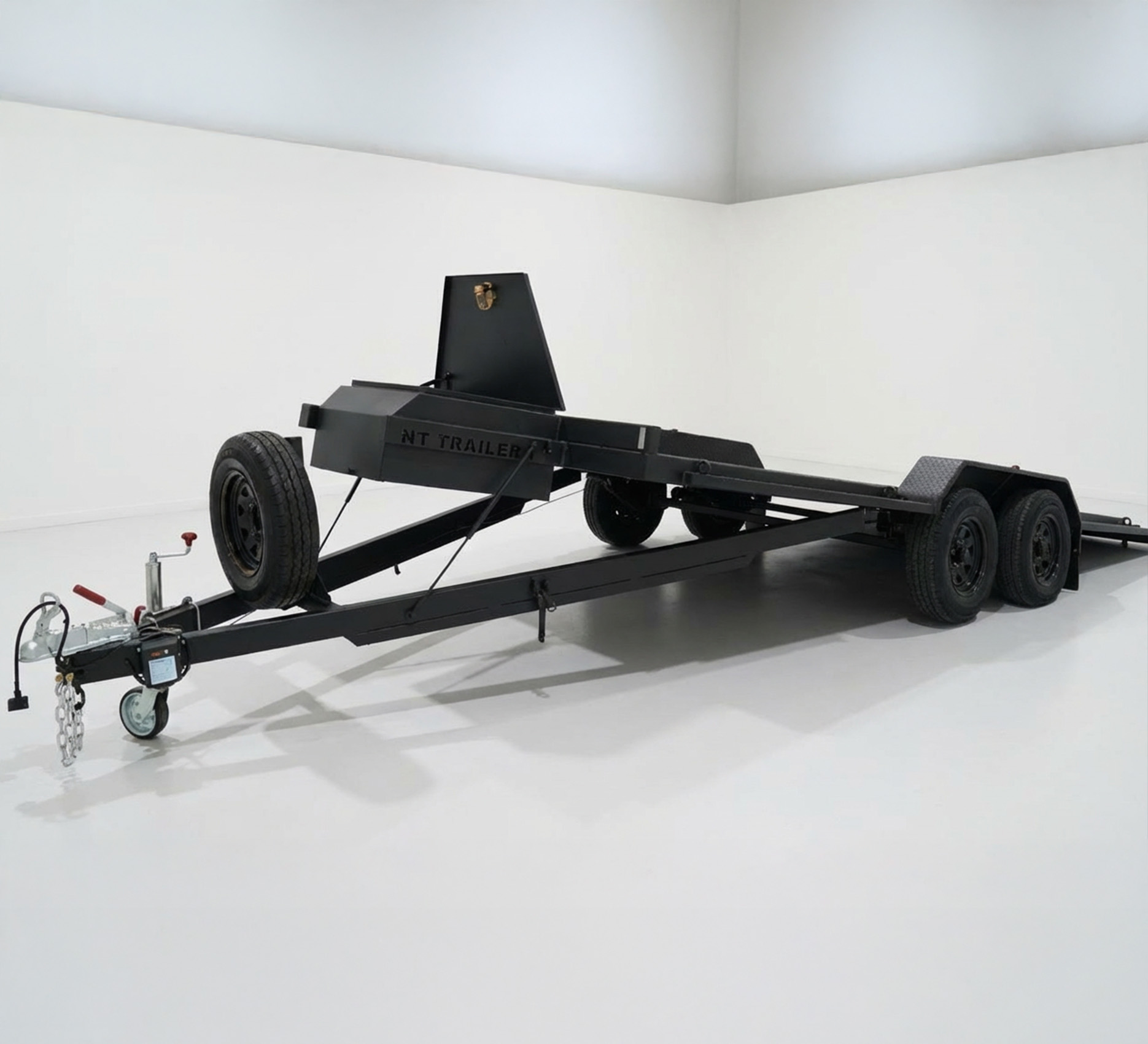

Our Tilt Car Trailer is built to provide superior strength, durability, and functionality for transporting vehicles. Features a fully welded chassis with ATM of 3200kg, 16ft x 6.6ft perforated race deck for superior grip and drainage, and tilting design for easy loading of low vehicles. Equipped with extended long drawbar, winch post, 4-wheel electric braking with breakaway system, and load share suspension for reliable performance.

Key Features

Technical Specifications

Weight & Capacity

Aggregate Trailer Mass (ATM)

3,200kg

Tare Weight

1,100kg

Payload Capacity

2,100kg

Dimensions

Overall Length

5.5m (18ft)

Overall Width

2.0 (6.6ft)

Deck Dimensions

4.9m x 2.0m (16ft x 6.6ft)

Electrical System

Running Gear & Chassis

Suspension Type

Load Share/Roller Rocker (Greaseable)

Axle Configuration

Tandem Solid Axles

Wheels & Tyres

Light Commercial Sunraiser Rims with Heavy Duty Tyres

Additional Features

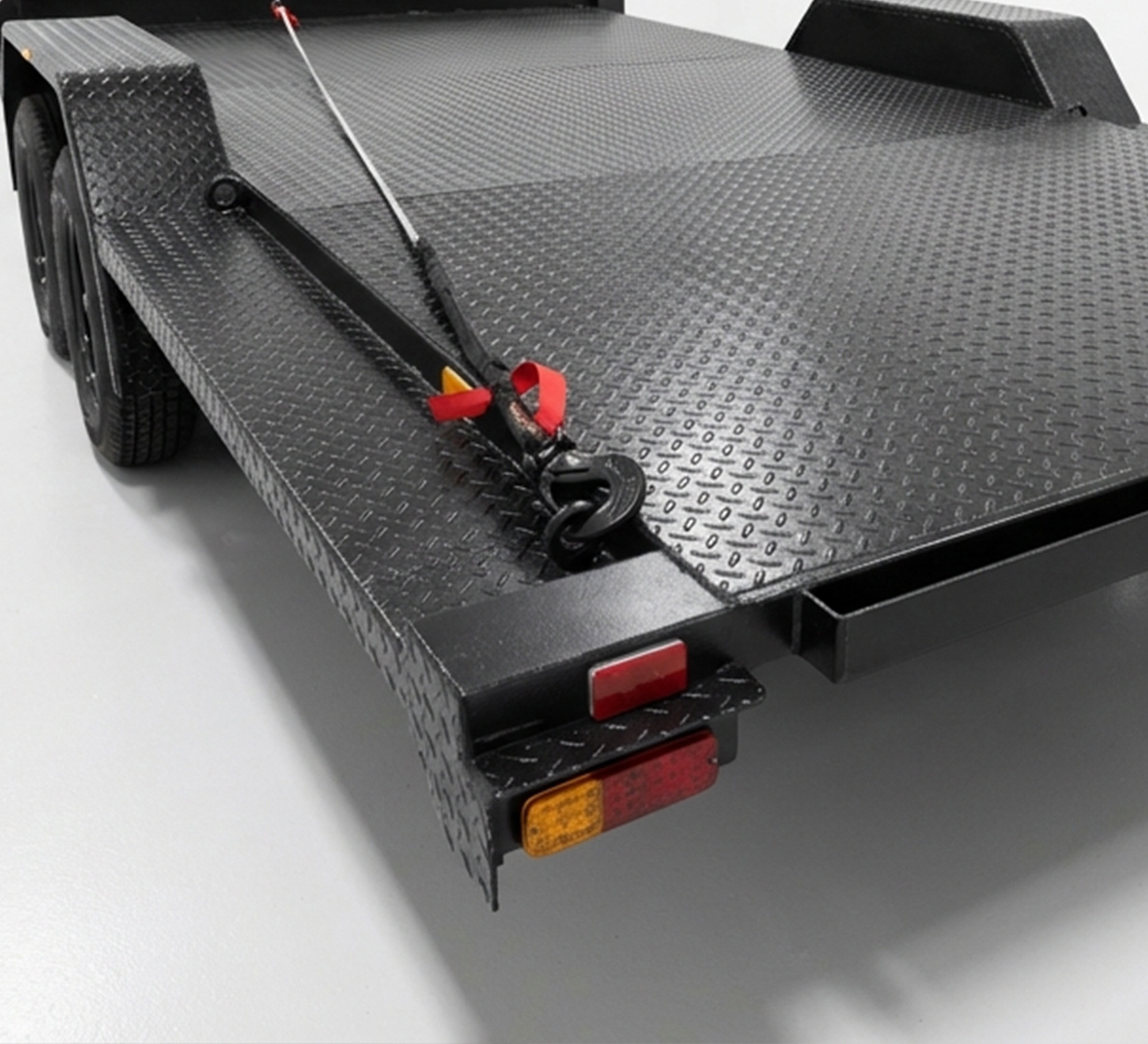

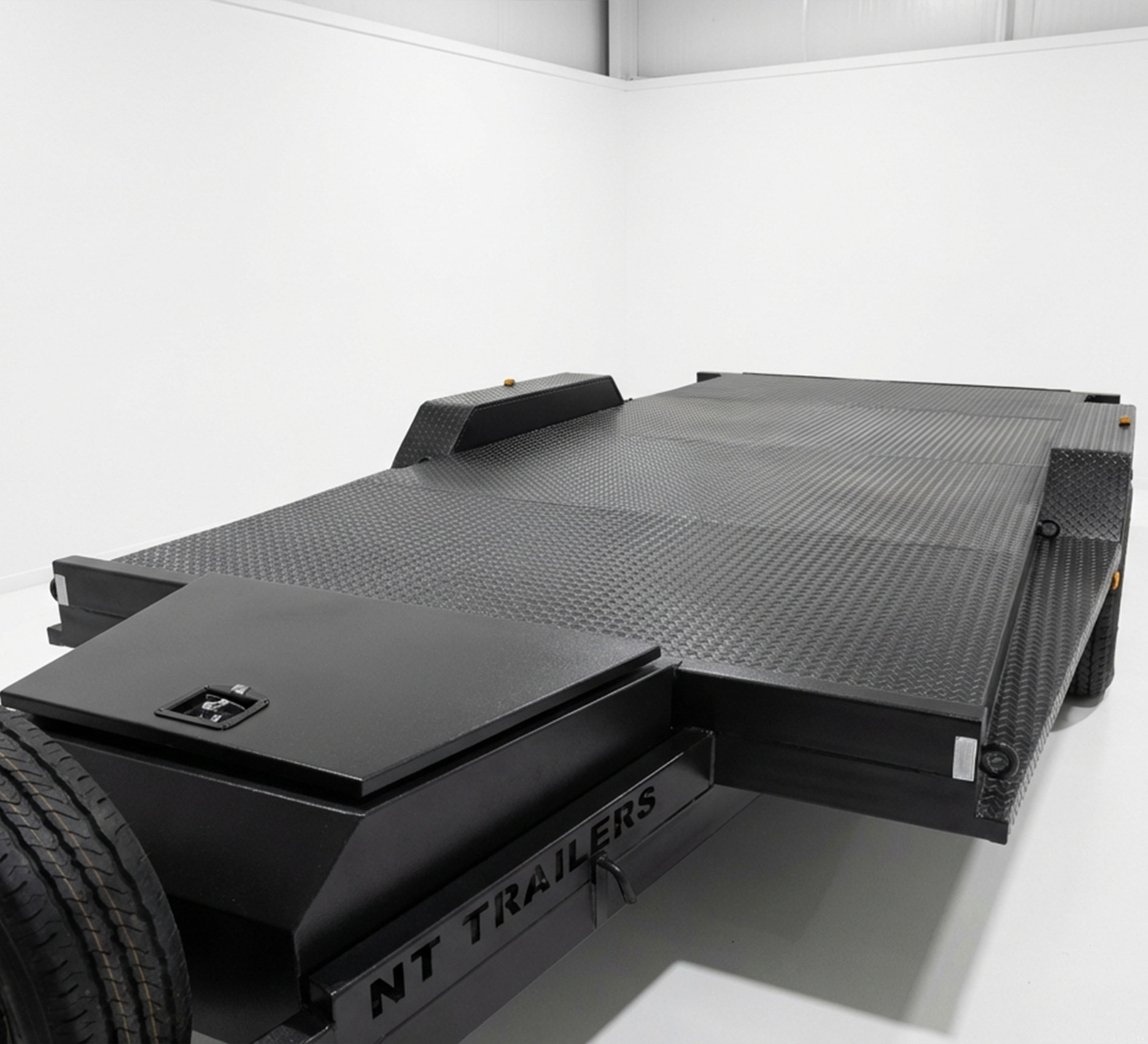

Deck Type

Perforated Race Deck -
Beavertail Design

Chassis Construction

Fully Welded Heavy Duty Steel

Braking System

4-Wheel Electric Brakes
with Breakaway Safety

Electrical System

Custom LED Lights with 7-Pin Plug

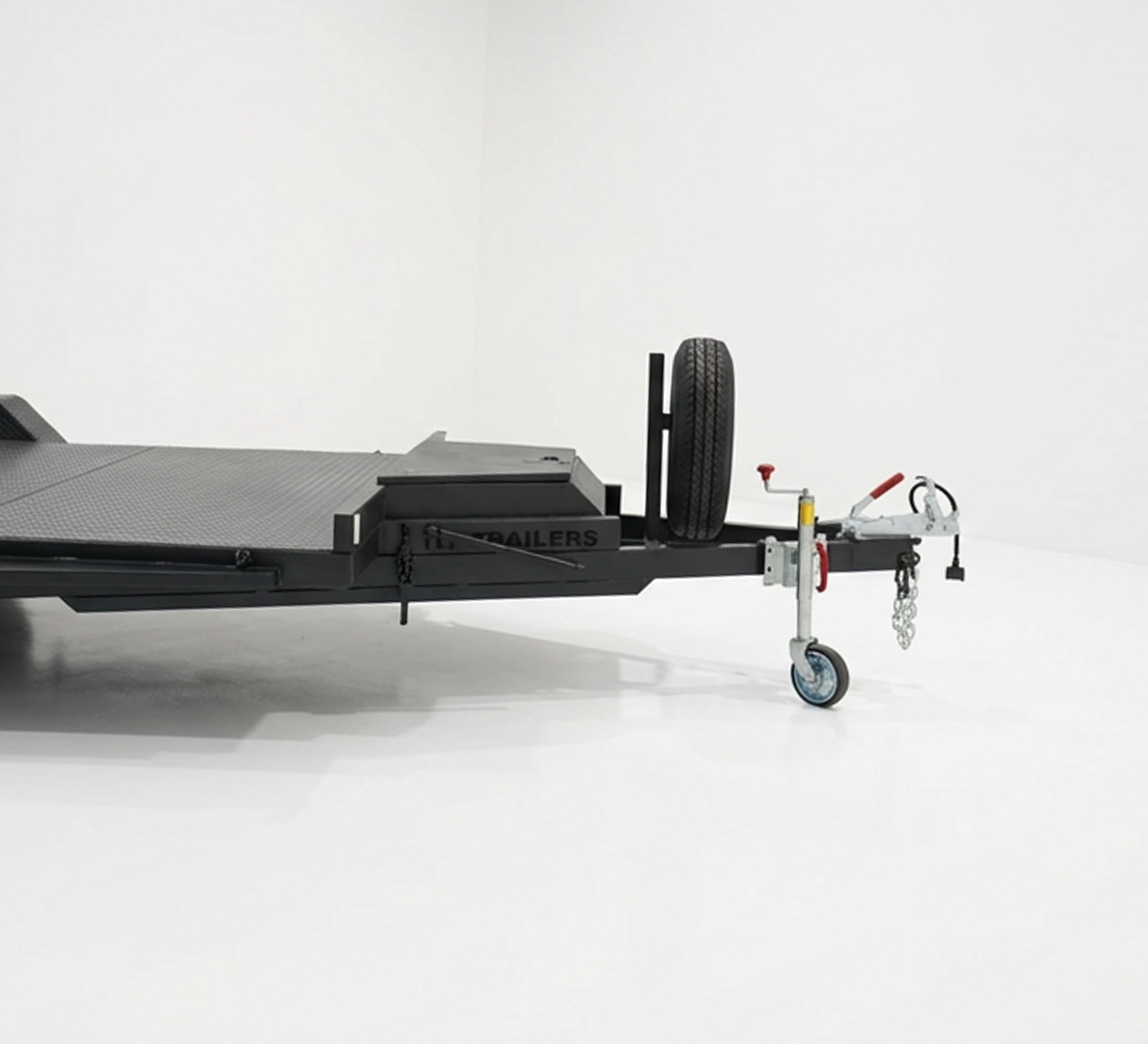

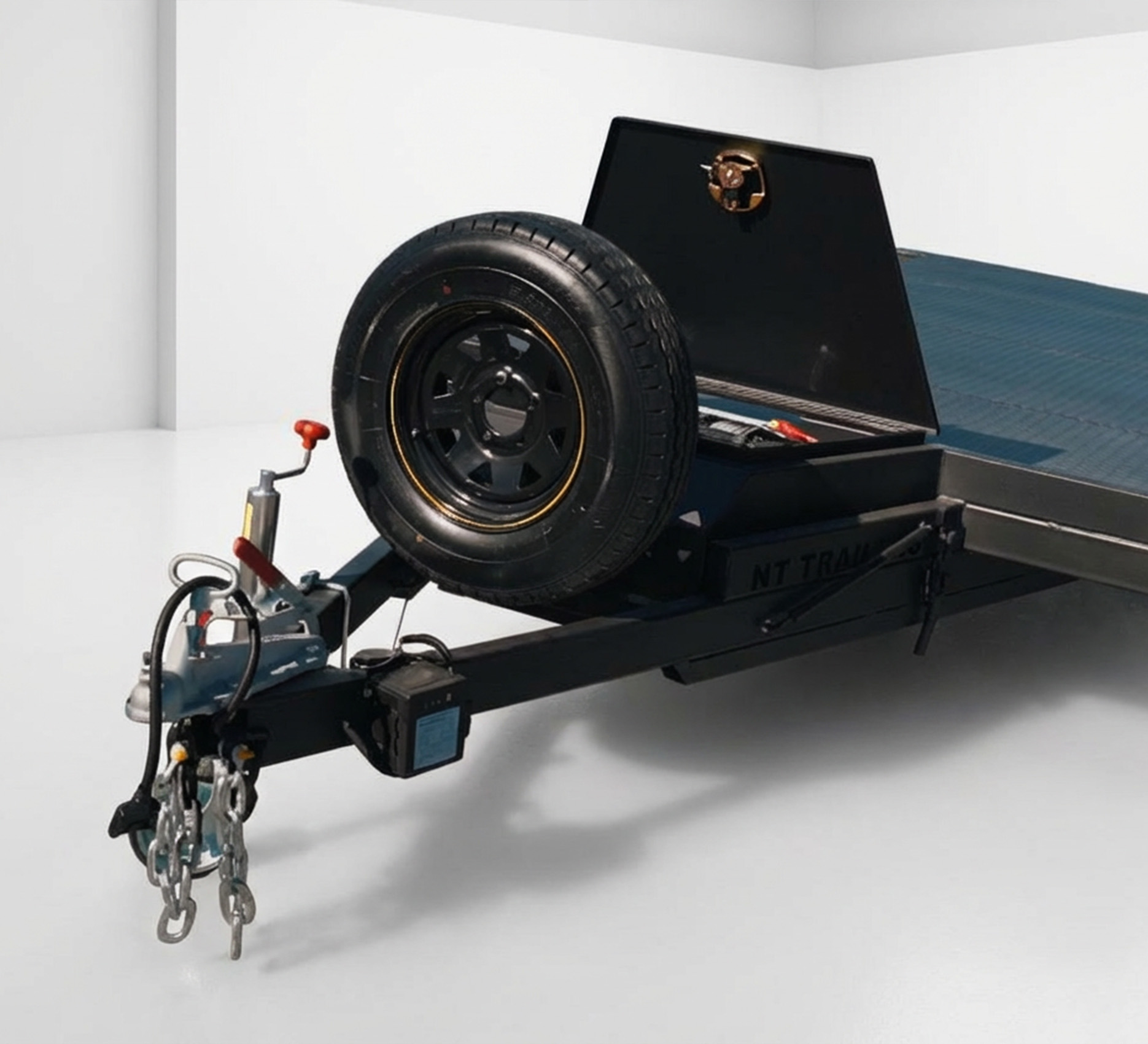

Jockey Wheel

8″ Heavy Duty Swing-Up
Jockey Wheel

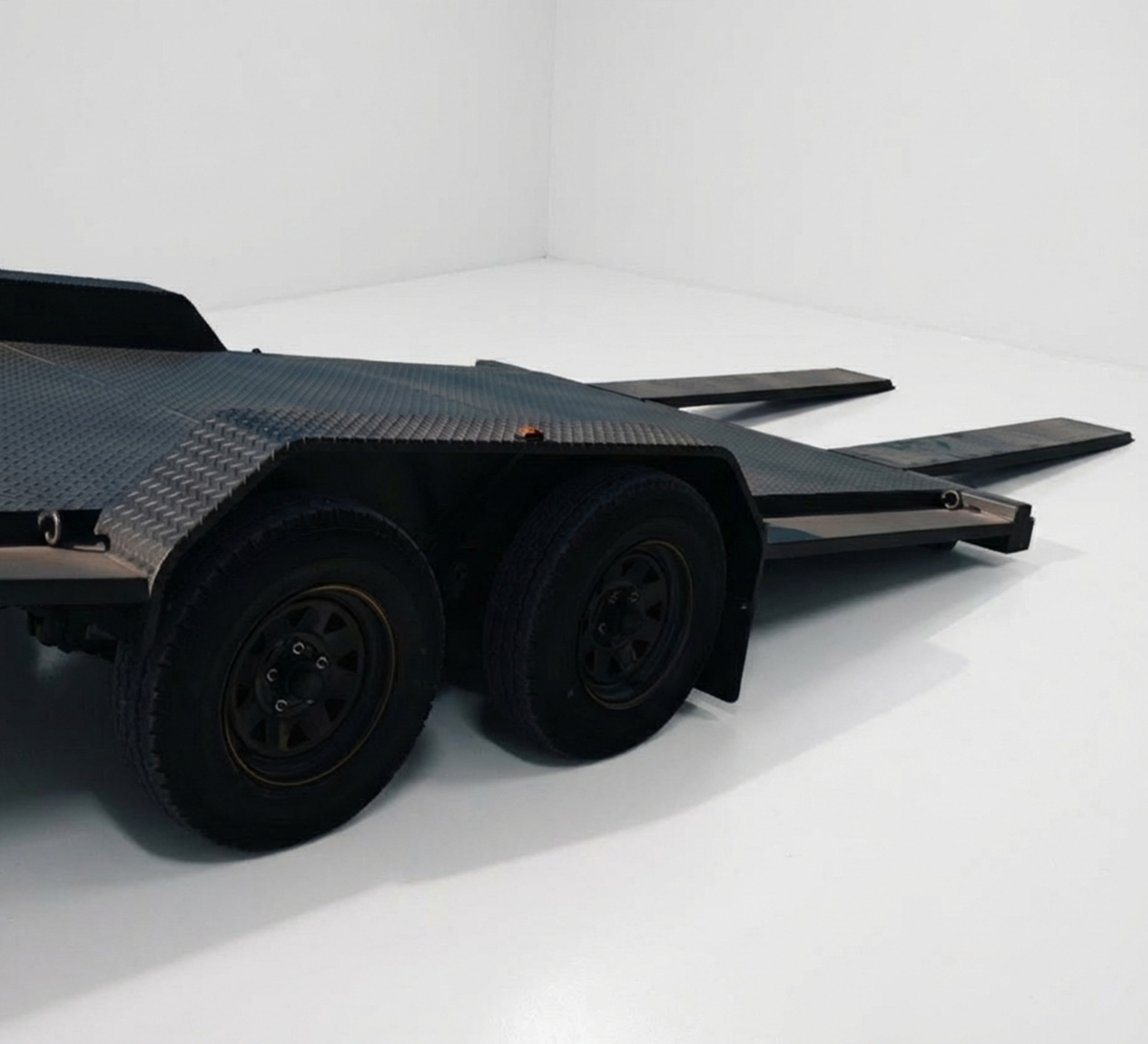

Loading Features

Slide-Away Under Body Ramps

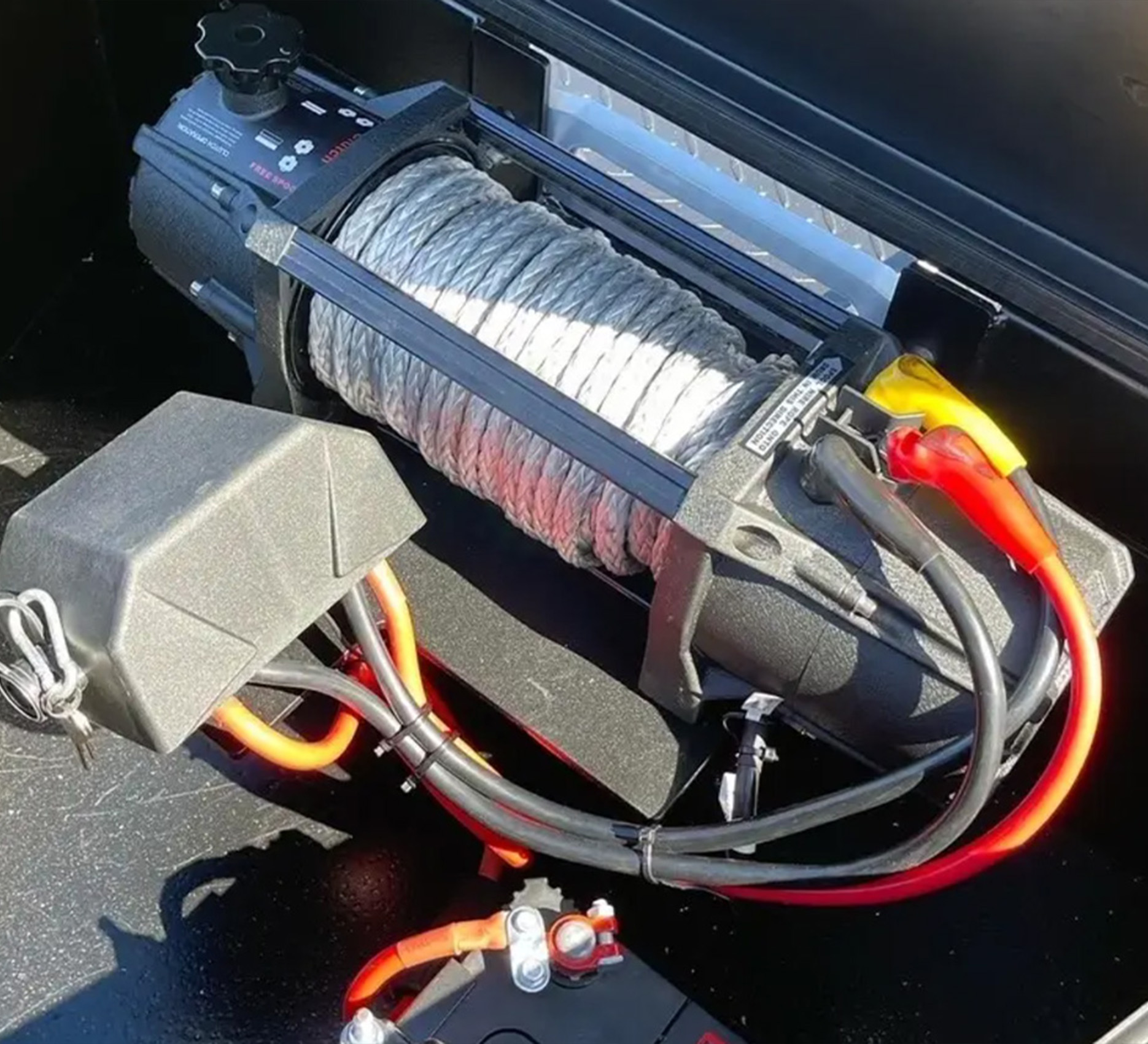

Winch System

Integrated Winch Box with
12V Winch & Battery

Compliance

ADR Compliant - Australian Design Regulations

Warranty & Support

• 12-month structural warranty (3-months for commercial use)

• Local service and support across Australia

• Professional delivery and setup

• Ongoing maintenance support
